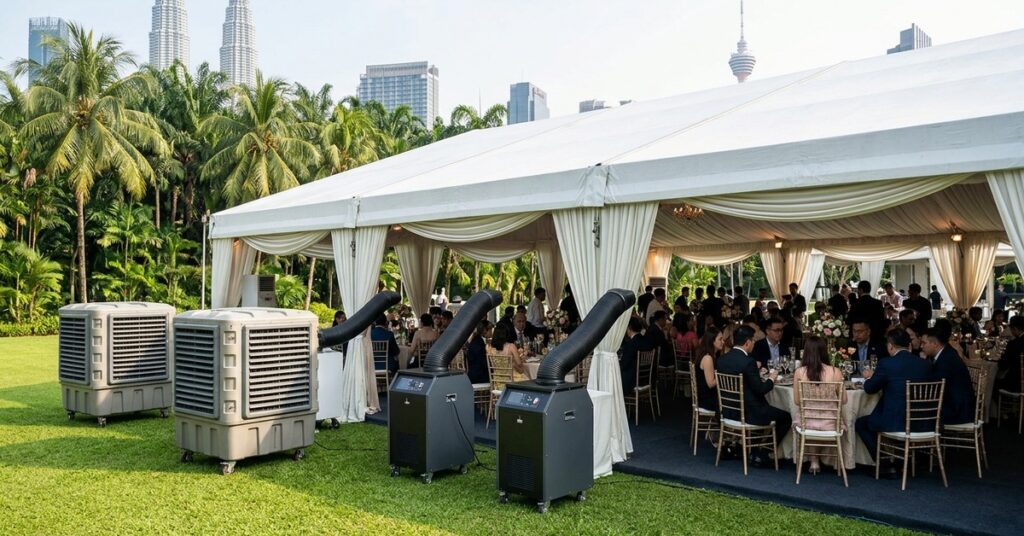

Planning an outdoor corporate event, marquee wedding, or sports festival in Malaysia requires solving one critical operational challenge: intense tropical heat and humidity. For open-sided Arabian canopies and temporary exhibition halls across Selangor and Kuala Lumpur, commercial air cooler rental is the most practical, energy-efficient solution to ensure guests and attendees stay cool, refreshed, and comfortable.
Key Event Cooling Principle:
Conventional air conditioners require an airtight, insulated enclosure to work. For open canopies, semi-outdoor gazebos, and high-traffic event tents, portable evaporative air coolers deliver continuous streams of fresh, filtered, chilled air (dropping ambient temperatures by 4°C to 10°C) without the need for airtight wall partitions.
How Many Air Coolers Do You Need? The Canopy Sizing Chart
One of the most frequent mistakes event organizers make is guessing unit quantities. An under-cooled canopy becomes uncomfortably stuffy, while overcrowding units wastes valuable floor space and generator power.
Kpacific’s rental team calculates equipment requirements based on canopy square footage, guest capacity, and sun exposure:
| Canopy / Structure Type | Dimensions & Area | Guest Capacity | Recommended Cooler Fleet |
|---|---|---|---|
| Standard Arabian Canopy | 20′ × 20′ (400 sq ft) | 30 – 40 pax | 2 units (18,000 m³/h mobile coolers) |
| Double Arabian Canopy | 20′ × 40′ (800 sq ft) | 70 – 80 pax | 3 – 4 units (positioned opposite corners) |
| A-Shape Marquee Tent | 40′ × 60′ (2,400 sq ft) | 200 – 250 pax | 6 – 8 units (perimeter cross-ventilation) |
| Major Corporate Pavilion | 40′ × 100′ (4,000 sq ft) | 400 – 500 pax | 10 – 12 units + 2 spot coolers for stage |
| VIP Stage / Presentation Dais | Focal zone (200 sq ft) | Key speakers / VIPs | 2 directional spot coolers (5HP AC or duct cooler) |
For custom tent layouts or combined canopy rows, explore our complete commercial air cooler rental fleet for detailed unit dimensions and throw-distance ratings.
Power Distribution, Generators & DB Box Planning
Reliable power distribution is the backbone of any outdoor event. Commercial evaporative coolers require significantly less electricity than compressor-based air conditioning, making generator management far simpler:
- Single-Phase Power Friendly: Each 18,000 m³/h mobile air cooler consumes approximately 1.1 kW to 1.5 kW running on standard 240V single-phase electrical supply (approx. 5.5A to 6.8A operating current).
- Starting Inrush Current: Induction motors draw 2× to 3× running current during initial startup. Always stagger startup sequences by 10–15 seconds per unit rather than flipping all circuit breakers simultaneously.
- Industrial DB Box Rental: For multi-canopy corporate events running 6 or more units, running domestic extension cords creates trip hazards and voltage drops. Kpacific supplies temporary 32A and 63A weatherproof Distribution Boards (DB boxes) with industrial CEE-form connectors and individual RCD protection.
Review our planning recommendations in our article on rental equipment access and power requirements.
Air Cooler vs Portable Air Conditioner Rental: Which Fits Your Event?
Choosing between evaporative cooling and refrigerated spot air conditioning depends entirely on your structure and ventilation:
| Event Factor | Mobile Evaporative Coolers | Package Air Conditioners (5HP / 10HP / 20HP) |
|---|---|---|
| Optimal Structure | Open canopies, semi-open tents, marquees | 100% sealed marquee tents with clear PVC/glass walls |
| Power Draw per Unit | 1.1 kW – 1.5 kW (Single-phase 240V) | 6.5 kW – 20.0 kW (3-Phase 415V generator mandatory) |
| Air Exchange | 100% fresh, filtered outdoor air | Recirculated closed-loop air |
| Rain / Weather Resilience | Exceptional; unaffected by open sidewalls | Requires airtight doors; air leaks cause condensation |
| Rental Budget | Highly cost-effective | Higher rental + heavy generator diesel costs |
The Corporate Hybrid Setup: Many high-end Malaysian banquets use a hybrid strategy: evaporative coolers maintain fresh, cool airflow throughout the main open dining canopy, while 5HP portable spot air conditioners provide dedicated refrigeration directly onto the stage, VIP table, or bridal dais.
On-Site Logistics & Standby Service by Kpacific
Kpacific’s rental service goes beyond dropping off equipment. Based out of our central depot in Taman Perindustrian Puchong, Selangor, our end-to-end event package covers:
- Pre-Event Ingress & Setup: Coordinated delivery, equipment placement, power cabling, and water tank pre-filling 2 to 4 hours prior to event commencement.
- Continuous Water Management: Units can operate via high-capacity internal water tanks (lasting 6 to 10 hours) or connected directly to a continuous garden hose water line with automatic float valves.
- On-Site Technical Standby: For major corporate functions and VIP weddings, a certified Kpacific technician remains on-site throughout the event to monitor water levels, air louvers, and power connections.
- Rapid Egress: Professional teardown and removal immediately following event conclusion.
We serve events across Puchong, Petaling Jaya, Subang Jaya, Shah Alam, Klang, Cyberjaya, Putrajaya, Kuala Lumpur, and wider Selangor.
What to Prepare Before Requesting a Rental Quote
To receive an accurate, customized quote within hours, please have the following event details ready:
- Venue & Surface Type: Grass lawn, tarmac parking lot, hotel terrace, or concrete warehouse floor.
- Canopy Dimensions: Number of tents and dimensions (e.g., three 20′ × 20′ canopies).
- Power Source: On-site wall isolators or mobile diesel generator.
- Event Schedule: Setup date/time, event start/end, and teardown window.
